IMMERSIONRC GHOST TTO 2.4GHZ RECEIVER

Size matters. The Ghost tto receiver weighs in at about 0.6g. and is only 14.8 x 11.5mm. a 15% smaller footprint than its closest competitor.

Most standard protocols are supported. including PWM. SBus. Fast SBus (200k). SRXL-2 (400k) and an inverted SBus (or rather an inverted-inverted SBus) to increase flexibility with F4 FCs.

Deja-Vu binding ensures that receivers already ‘known’ by a Ghost transmitter (through a previous bind operation) no longer require a button press to bind them. This also goes for new receivers. which will bind for the first time without the need for the button (all of this because we can’t stand tearing models open to find that buried bind button).

Editor’s Note: Should we mention that the tto is the ‘Big’receiver??? more on that later.

Check out ourReceivers.IRC Ghost Productsand all ourImmersionRC Products!

FEATURES:

• 2.4GHz ISM Band

• ‘JR’ Compatible Transmitter with Diversity Transmission

• One Of The Smallest Receivers On the Market

• Chirp Spread Spectrum. with Adaptive FHSS

• Crazy Race Performance. 222.22Hz updates

• ~4ms End to End Latency. with OpenTx Integration

• More range than most pilots will ever need

SPECIFICATIONS:

• Downlink RF Power: +13dBm

• Sensitivity: -117dBm in Long Range mode

• Serial Formats: SBus. SBus-Fast (200k) . SRXL-2 (400k). GHST. SBus Inverted

• Firmware: Over-the-air (OTA) upgradable

• Power Supply: 5V recommended. as low as 3.3V tolerated

• vTx Control: Tramp control from ‘T’ pin on Rx. regardless of selected serial format

• Dimensions: 14.8mm x 11.5mm. 0.6g (w/o antenna)

• Rx Noise Floor Analysis: Auto on power-up. or on demand from the Tx

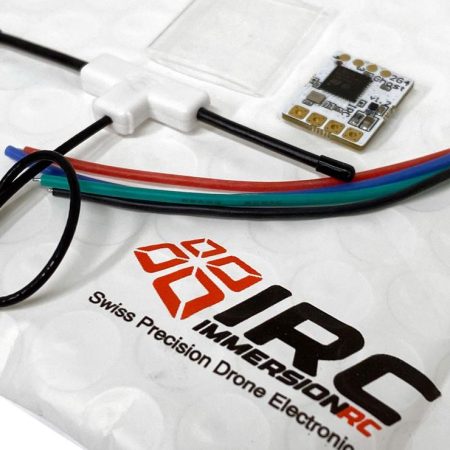

PACKAGE INCLUDES:

• 1 x Atto Receiver

• 1 x qTee Antenna

• Silicone Cables

• Heat Shrink

ORQA GOGGLE INTEGRATION:

That space on the FPV.Connect board?? yeah. that is for a Ghost receiver. the tto.

Ghost transmitters and receivers can form a network. without the need to use bluetooth or wifi. and communicate between themselves without sacrificing critical control performance.

Clear channel scan with automatic channel assignment. auto-start DVR recording when throttle stick is raised. and a bunch of other cool features planned for 2020.

PROTON PACKS FOR DAYS:

Simple PCBs designed to dramatically simplify wiring. mounting. and cooling of Tramp Nano + Ghost combinations.

36×36 single-sided. 20×20 double sided. 20×20 single sided. ‘Toothpick style’. and a special version designed for the Five33 Tiny Trainer.

QTEE ANTENNAS:

qTee. a.k.a ‘Cutie’ antennas are center-fed dipoles. with integral balun to ensure no cable radiation. and without unexpected nulls in the radiation pattern.

Tip to Tip length of just 60mm. easy to install in anything from a Whoop to an X-Class quad

SYSTEMS INTEGRATORS/MANUFACTURERS:

ImmersionRC is open to discuss with manufacturers who wish to embed Ghost into other systems (Hobby. Industrial. Law Enforcement. etc.). An embedded Ghost 2.4GHz Rx occupies approx. 10mm x 10mm of PCB space.

For use on sub-GHz bands. the ‘Red Ghost’ product line can be custom ordered for use on licensed bands from 140MHz to 1GHz.

GPS + NOISE:

Another advantage of running 2.4GHz instead of the more traditional sub-GHz frequencies for long range is that 2.4GHz has no harmonics that can desensitize GPS receivers (which are in the 1.5GHz band). so GPS position fixes become more precise.

In addition. Drone/Quad/UAV electrical noise due to fast switching signals is broadband. and also sub-GHz (typically sub-500MHz). and doesn’t desensitize the 2.4GHz Ghost receiver.
