Description

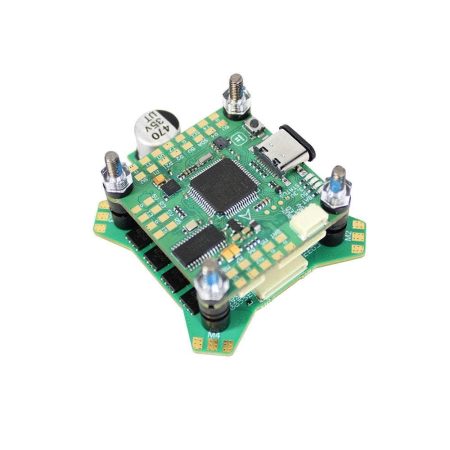

The iFlight Blitz ATF435 Stack/Combo provides dependable performance and efficient control of your 2-6S powered quadcopter. This 30×30 stack/combo features an ATF435 FC and 55A 8Bit 4in1 ESC to give you responsive controls and reliable power delivery. Fly worry-free and explore new heights. This flight controller comes with plug-in ports for 9V VTXs. LED/Buzzer. receiver. camera. & the ESC. The NEW ATF processors allow for a product like this. a 60-dollar stack that is feature-rich and comes with a 55Amp ESC. which is perfect for those amp-hungry builds.
To configure download ATBetaflight and if that does not automatically connect. here are virtual com port drivers. Future versions of Betaflight will fully support these boards.
Specifications

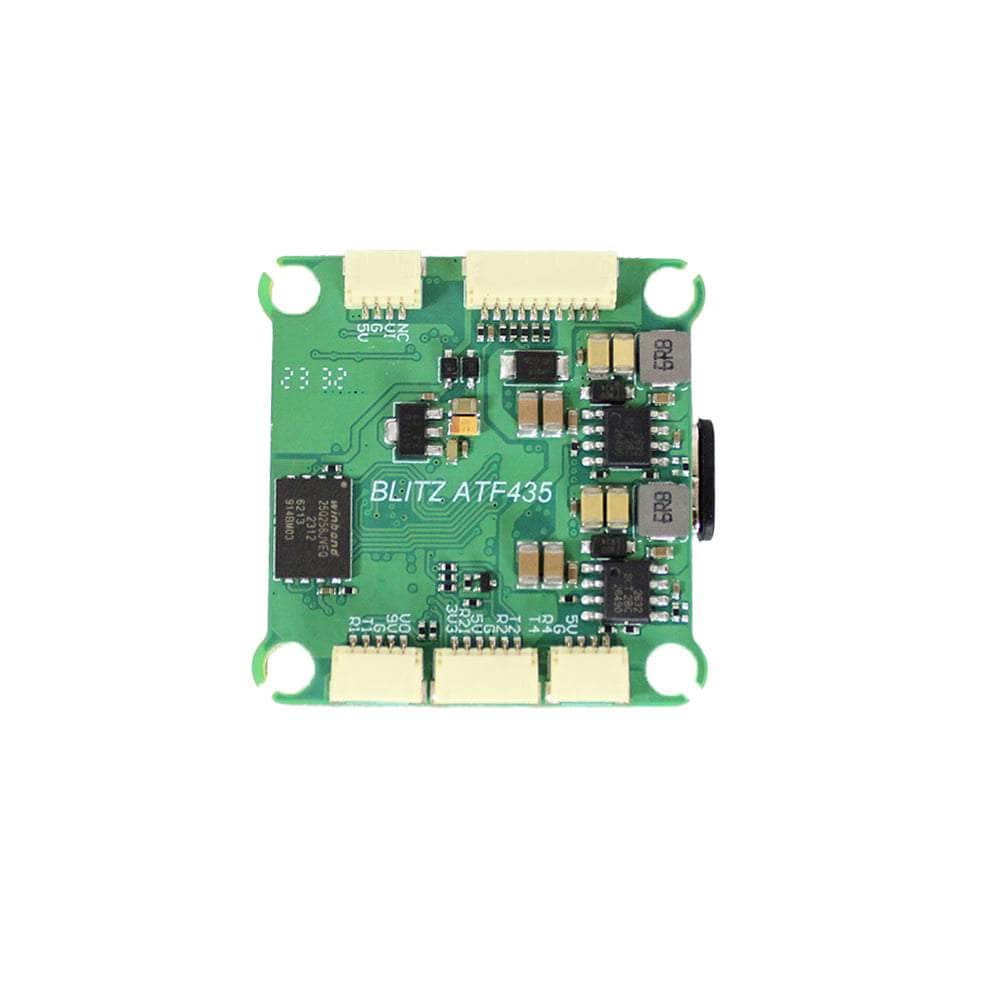

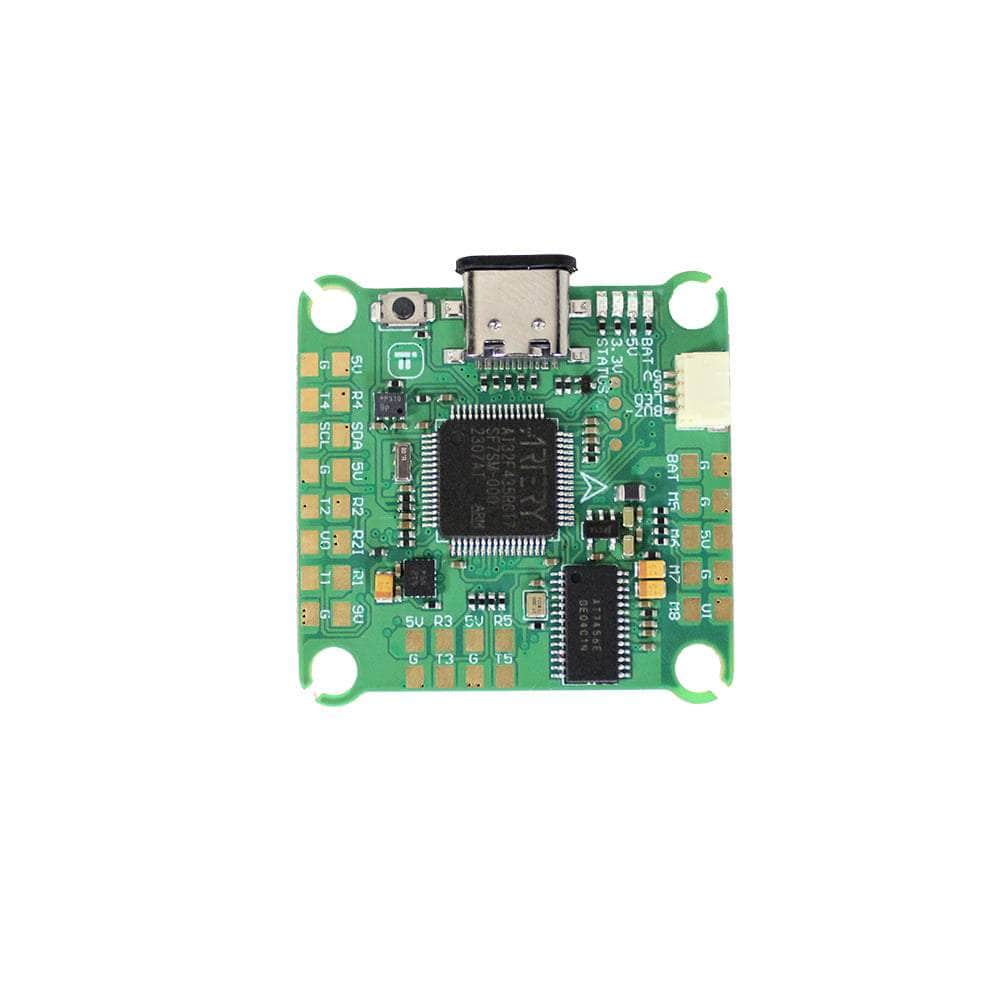

iFlight Blitz ATF435
- MCU: AT32F435CGU7
- Gyro: BMI270
- Barometer: DPS310
- OSD Chip: AT7456E
- Flash: 32MB (Blackbox flash)
- UARTS: 6
- Motor outputs: 4x (SH1.0 connector)
- I2C serial: SDA / SLA pads
- Smartaudio / IRC Tramp VTX protocol supported
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFLIGHT_BLITZ_ATF435
- Mount pattern: 30.5×30.5mm / 4mm PCB hole diameter
- Dimensions: 36.5×35 mm
- Weight: 7.8g
- BEC: 5V 2.5A / 9V 2A

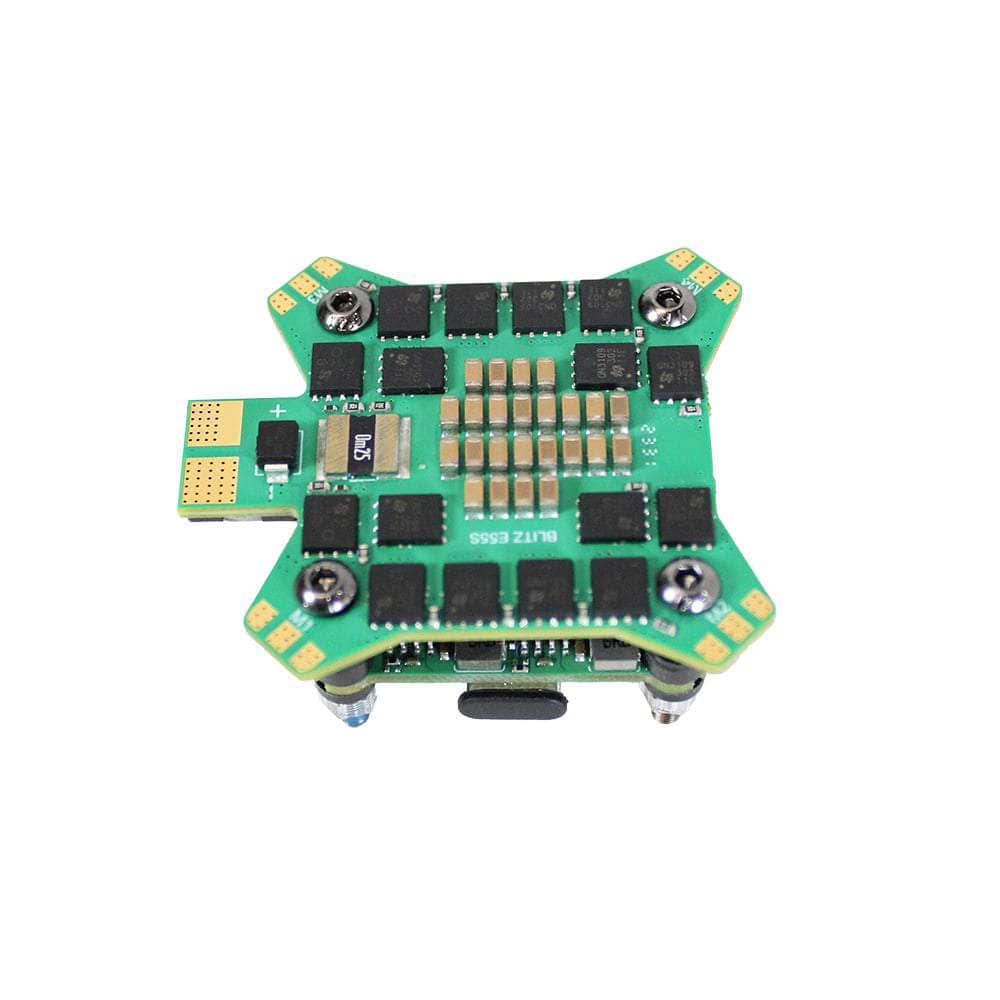

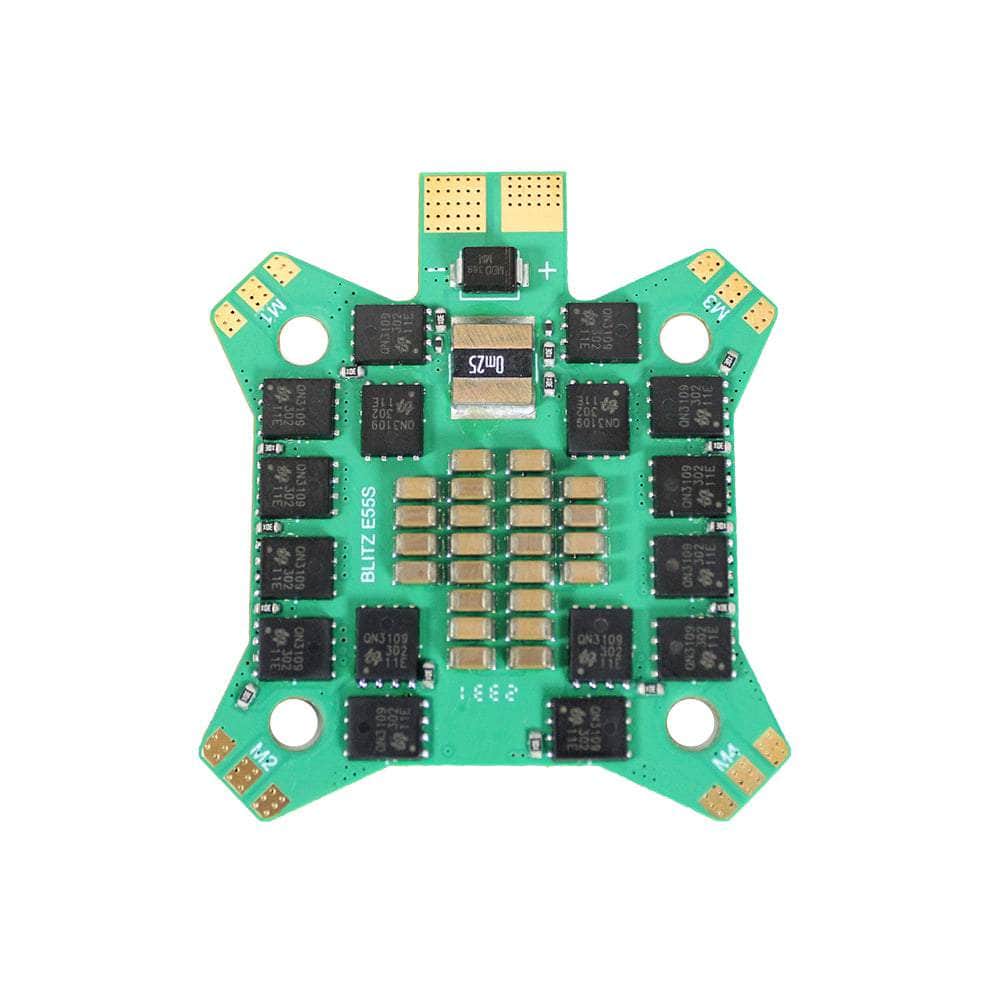

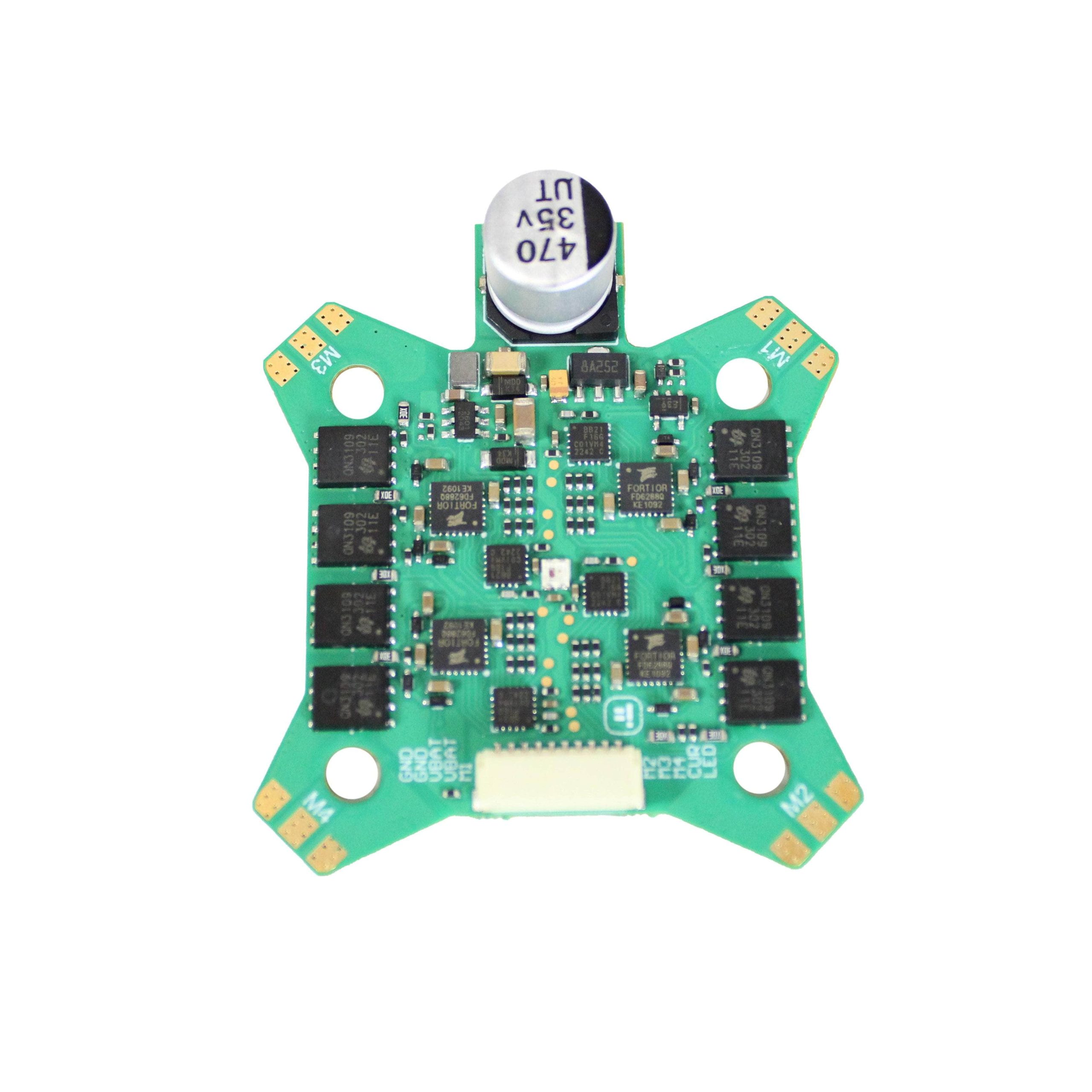

Blitz E55S ESC
- Mounting Holes: 30.5×30.5mm/??4mm
- Weight: 14.7g
- Supports 2-6S lipo input
- MCU: G071
- Constant: 55 Amps
- Burst: 65 Amp
- Current sensor: Yes
- BEC: No
- Current rate: 200
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)
Include
- 1xiFlight Blitz ATF435 E55S 2-6S 30×30 Stack/Combo (ATF435 FC/ 55A 8Bit4in1 ESC)
