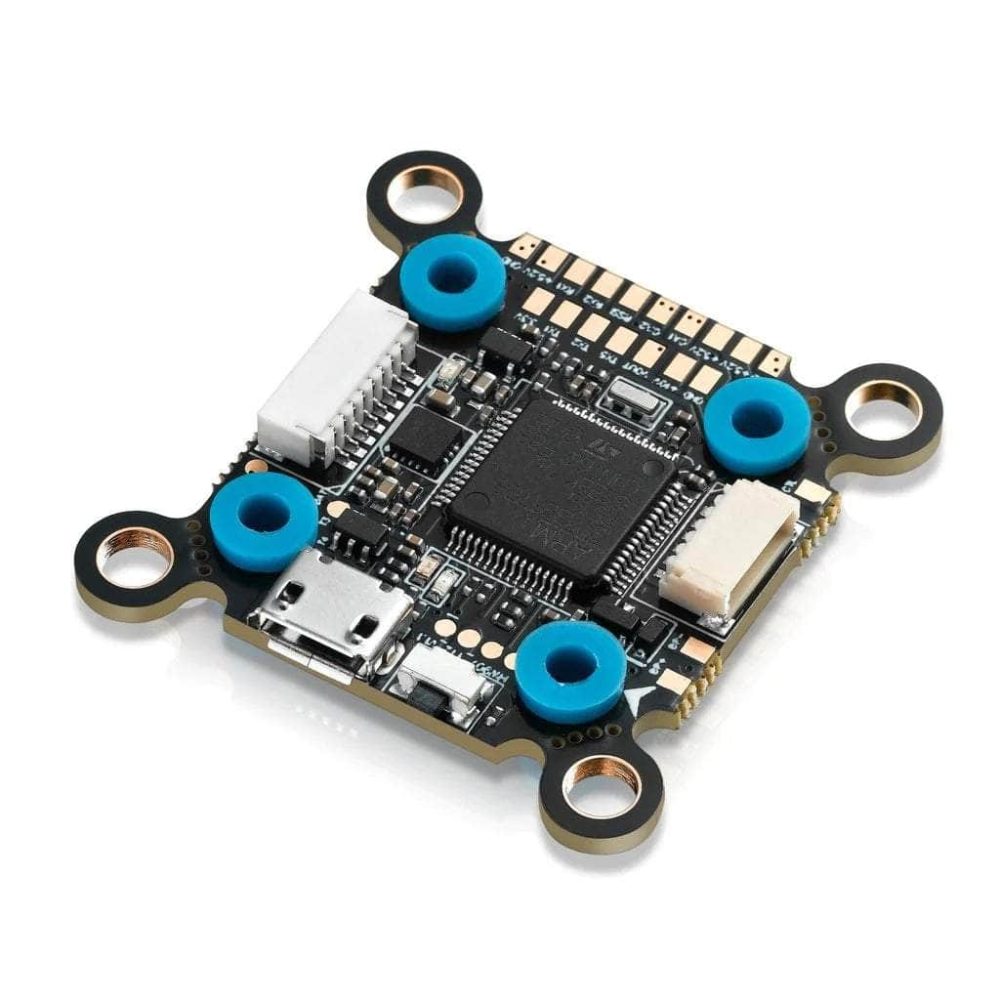

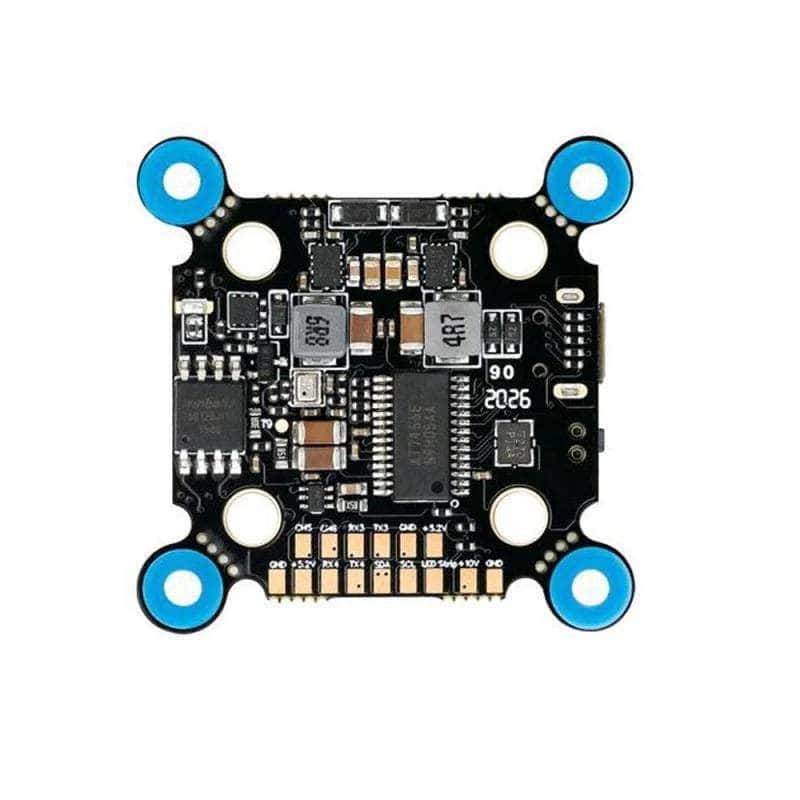

Hobbywing XRotor F7 3-6S 20×20 / 30×30 Convertible Flight Controller

Take a look at theXRotor F7 Convertible Flight Controller from Hobbywing.This FC is similar to other versions with its OSD. and voltage monitoring. but the F7 now comes with an all-new 5V & 12V dual BEC Circuit and a special interface for the DJI image transmission system. The XRotor F7 Convertible flight controller is equipped with STM32F722 MCU which has a powerful computing ability and fast running speed. High sensitivity ICM20602 six-axis motion sensor. built-in 5V & 12V double BEC. integratedOSD. and a pitch module.

Features

• Equipped with STM32F722 MCU which has powerful computing ability and fast runningspeed. and high sensitivityMPU6500 six-axis motion sensor.
• Supports BetaFlight. Cleanflight. Butterflight. Inva. and othermainstream FPV firmware.
• DJI image transmission system port equipped with corresponding flat cable
• Supportsbidirectional DShot digital throttle communication.
• Unique installation design and shockabsorption structure.
• On-board large capacity Flash memory chip.
• On-board 5V & 12V dual BEC circuit.
• On-board Pit Switch module.

Specifications

• Firmware: HOBBYWING_XROTORF7CONV
• FC Programming: Supported
• Programming via Betaflight/ Cleanflight-configurator
• Compatible with (Modes) PWM. Oneshot125. Oneshot42. Multishot. Dshot150. Dshot300. Dshot600. PROSHOT1000
• Compatible with (Transmitters) PPM. Spektrum. SBUS. SUMD. SUMH. XBUS. IBUS. JETIEXBUS. CRSF. SRXL
• OSD Built-in
• Input Voltage:3-6S
• Gyro:MPU6500
• Voltage Monitoring Supported
• Current Monitoring Supported
• External Buzzer Supported
• LED Control Supported
• BEC 5V @ 1.5A ; 10V @ 1.5A
• Mounting Pattern: 20x20mm M3 / 30x30mm M3
• Size 32x32mm
• Weight 3.3g

Manual Download

Includes

• 1x Hobbywing XRotor F7 3-6S 20×20 / 30×30 Convertible Flight Controller
• 1x Soft Mounting Grommets Set
• 1x Signal Cable
• 1x User Manual
