Description
The HGLRC F760 Mini F722 3-6S 20×20 Stack/Combo is a powerful and reliable choice for your drone. With a 32-bit processor. a 4-in-1 ESC capable of up to 60A current(65A burst). and a high-performance MPU6000 gyro. you will get smooth and precise flight performance.
Specifications

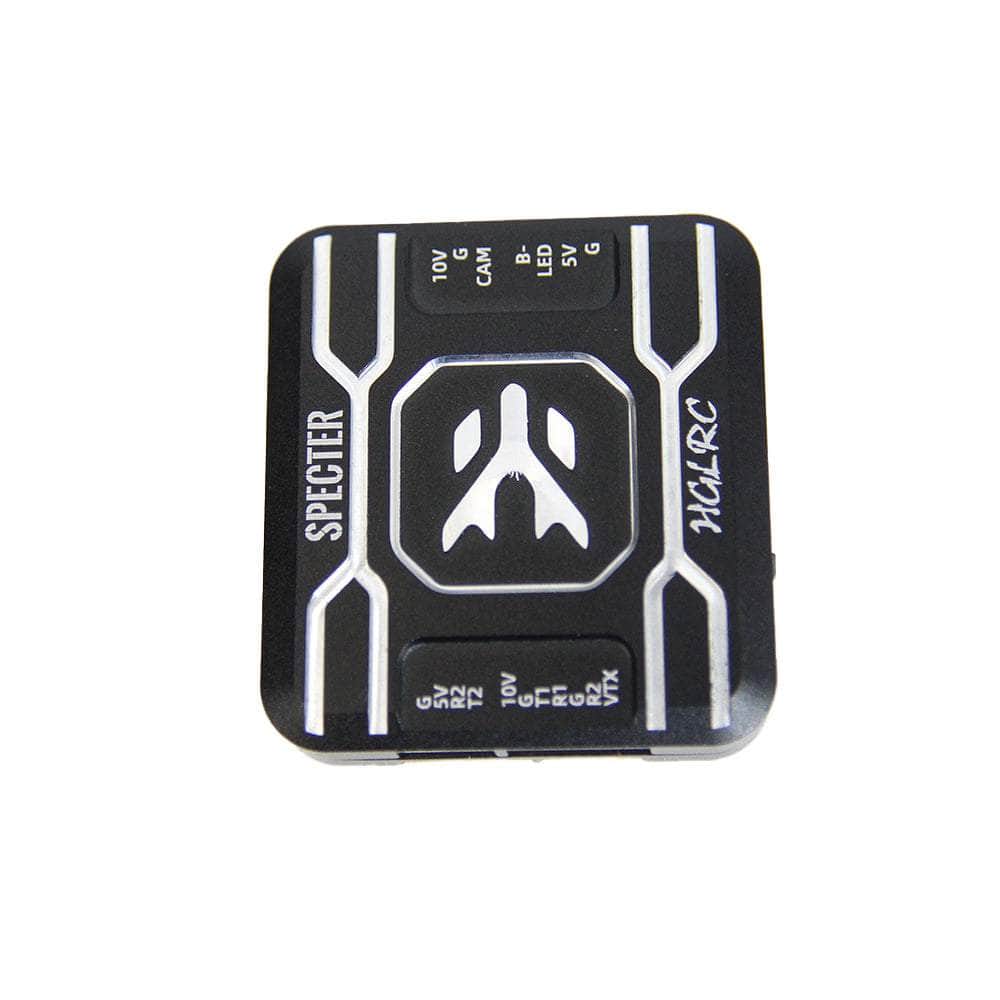

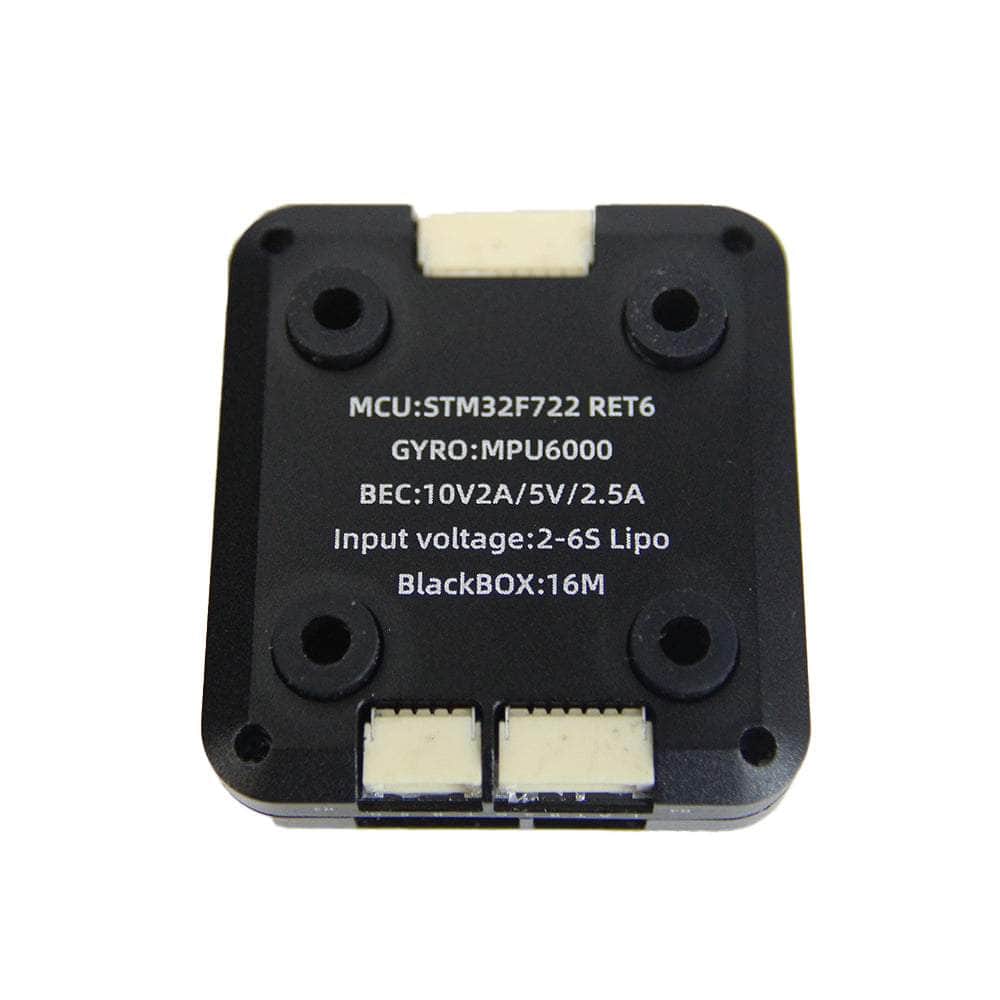

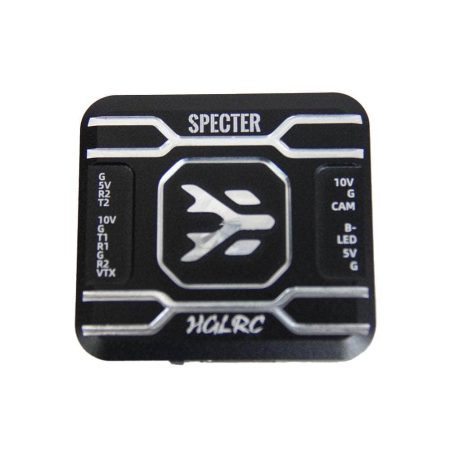

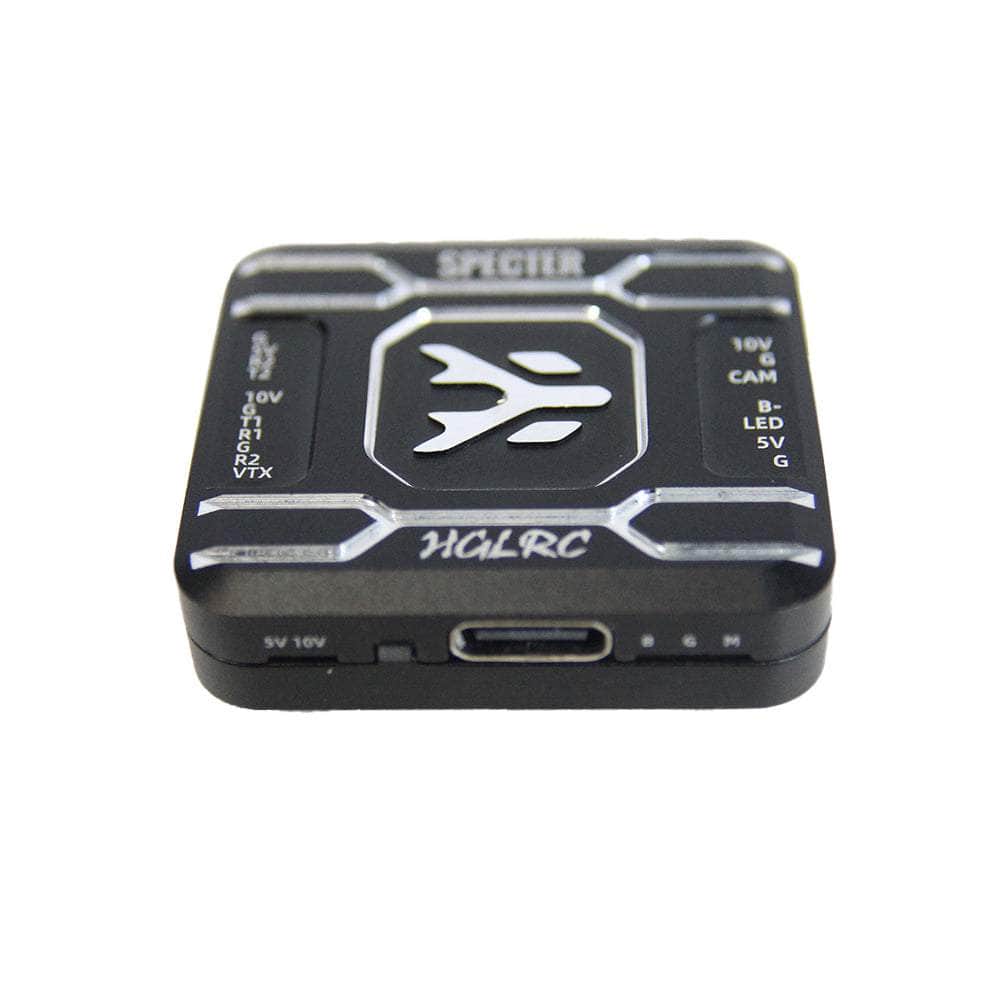

HGLRC SPECTER F722 mini FC
- FC Firmware: HGLRC F722 Mini
- MCU: STM32F722
- Gyro: MPU6000
- OSD: AT7456E
- Barometer: BMP280
- Blackbox 16MB
- UARTS:5
- Input Voltage: 7.4V-22.8V/2-6S LiPO
- BEC: 10V2A/5V2.5A
- Size: 37mmx34mmx9.8mm
- Mounting: 20×20. M3
- Weight: 18g

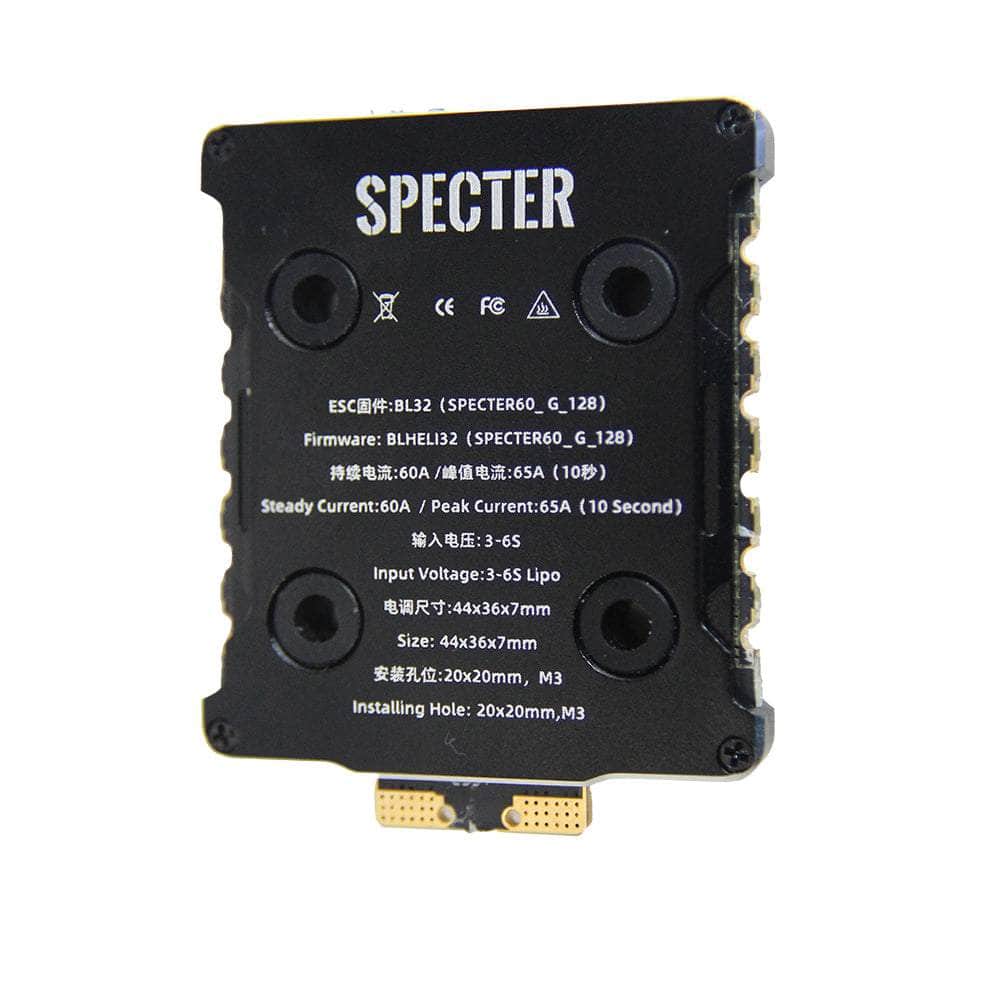

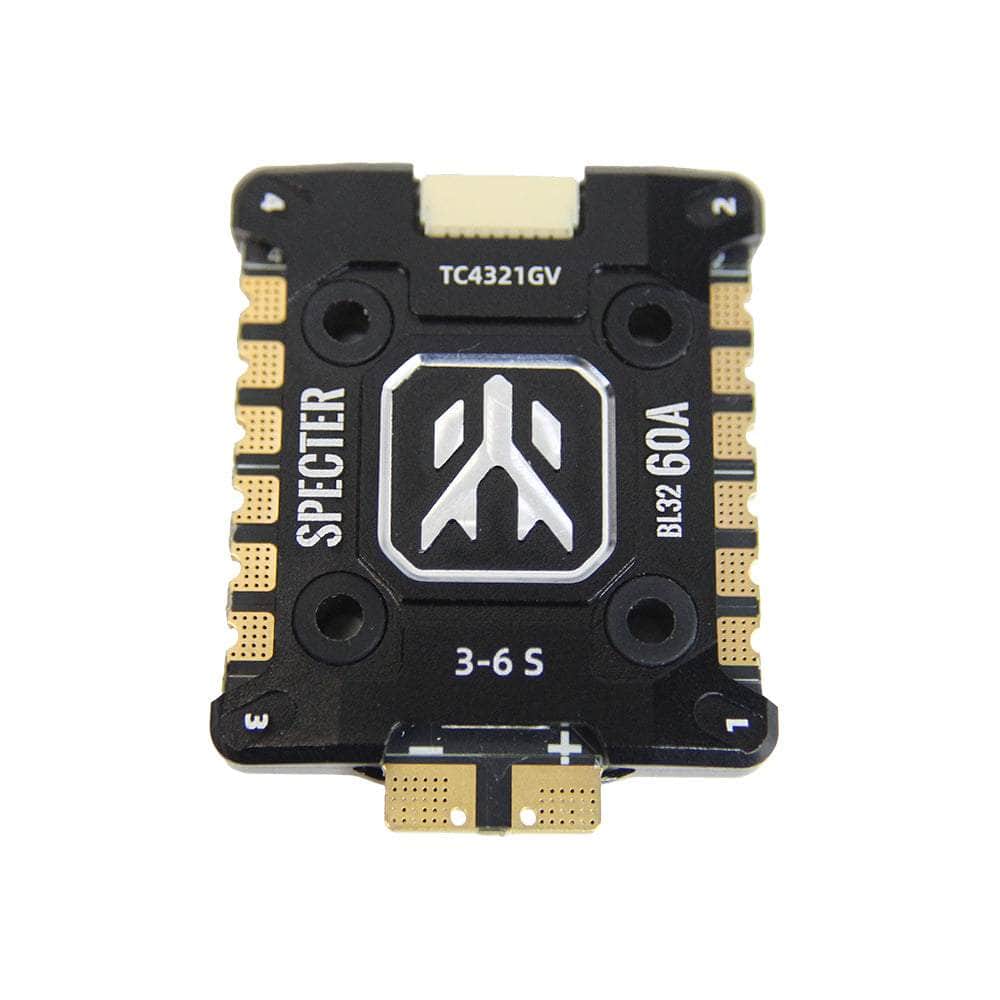

HGLRC SPECTER 60A 3-6S ESC
- Input voltage: 3-6S
- Continuous Current: 60A
- Burst Current: 65A (10 Seconds)
- MCU: STM32G071
- Firmware: BL32 ( SPECTER60_G_128)
- Size: 44mmx36mmx7mm
- Mounting: 20×20. M3
- Support protocols: Dshot600/300/150/Oneshot125/42. MultiShot
- Weight: 19.5g
Includes
- HGLRC F760 Mini 3-6S 20×20 Stack/Combo (F722/ G071 32Bit 60A 4in1 ESC) – MPU6000
HGLRC SPECTER F722 mini MPU6000
HGLRC SPECTER 60A 4in1 ESC
Wiring Diagram
