Description

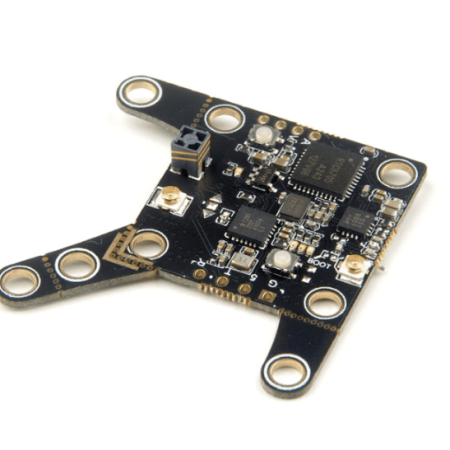

ELRS Fyujon is a very simple and easy-to-use 2-in-1 module that integrates 5.8GHz video transmission and 2.4GHz ELRS receiver. They can be integrated into a board for use. or they can be split into independent VTX modules and receiver modules to be used separately. They are all open source solutions that are currently very popular with FPV pilots. Compatible with 20mmx20mm. 30mmx30mm stack mounted way and 25.5mmx25.5mm whoop mounted way. Due to the ultra light weight (only2.1gram). it would be a better choice for small toothpick quad or analog version Cinewhoop.
VIDEO: HappyModel Fyujon ExpressLRS RX + 300mw VTX in a tiny package
Features
- Great for Toothpick builds or Cinewhoops
- Lightweight 2-in-1 AIO Board
- ExpressLRS 2.4GHz Receiver
- 5.8GHz OPENVTX
Specifications
ELRS 2.4GHZ RECEIVER
- ELRS Firmware target: HappyModel EP 2400 RX
- ESP8285 MCUSX1280/1281IMLTRT RF Module
- Antenna: Onboard SMD ceramic antenna
- Frequency Range: 2400 MHz to 2500 MHz
- Maximum receive refresh rate: 500Hz
- Minimum receiver refresh rate: 25Hz
- Antenna Peak gain: 3.7Db
- SMD Ceramic antenna
- Working Voltage: 5v
- Type: ISM
5.8GHZ OPENVTX
- Transmitting Power: 0/RCE/25mw/100mw/300mw
- Current (5v): <650ma (300mw)
- Frequency: 5.8G 48CH
- Power supply: DC 5V
- SmartAudio ready
IMPORTANT NOTES
- Notes: The VTX needs to work with Smartaudio or IRC Tramp. it can’t work without Smartaudio or IRC TRAMP support.
Includes
- 1x Happymodel ELRS Fyujon V2 AIO Board – 5.8GHz OPENVTX + 2.4GHz ERLS RX
- 1x Antenna
