Description

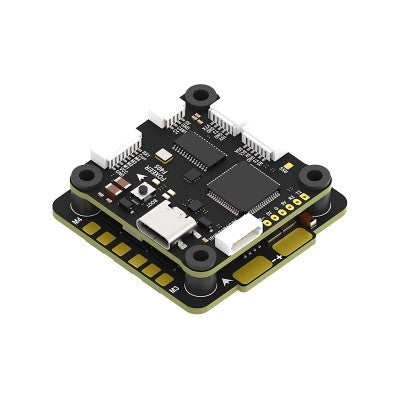

Introducing the Foxeer F405 V2 Flight Controller Reaper 55A ESC 8S Stack.
Get high-performance and feature-rich capabilities at an unbeatable price. With BLHeli_32 firmware. the Reaper 55A 4-in-1 ESC can handle up to 8S voltage input. 8 motors. and 55A continuous and 80A burst.
The F405 V2 Flight controller features the powerful STM32F405RGT6 MCU. making it perfect for analog or HD digital setups running Betaflight or Ardupilot. Upgrade your flight experience today.
Specifications:
Foxeer F405 V2 Flight Controller
- CPU STM32F405RGT6
- Gyro ICM42688-P
- Barometer DPS310
- Power Supply 4~8S Lipo
- BEC Output DC5V/3A; 10V/3A
- OSD BF OSD
- Black Box 64M Flash Memory
- UART 6 Set
- Connector DJI; GPS/Compass; 2 Camera Switch; VTX
- ESC Telemetry RX1
- X8 Supported
- ADC X3
- PWM 1CH
- Buzzer YES
- Smart Audio YES
- LED 1 Set 2812 LED
- USB Type-C
- Fireware FOXEERF405V2(BetaFlight); F405V2(Ardupilot)
- Size 37X37mm
- Mounting Hole 30*30mm.??4mm
- Weight(g) 8.4g
- Working Temperature -20?? ~ +55??
- Working Humidity 20??95%
- Storage Temperature -20?? ~ +70??

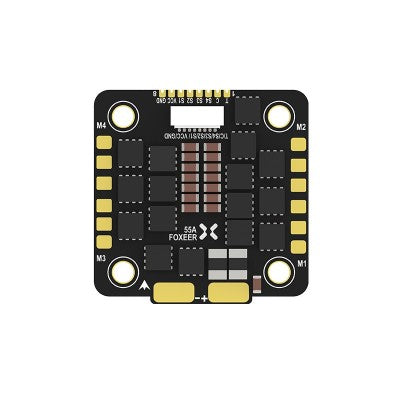

Foxeer Reaper 55A ESC
- Firmware FOXEER_Reaper4IN1_F4_55A_128_Multi_32_9
- Continuous /Burst Current 55A*4 / 80A*4
- Input Voltage DC 9V~36V (3-8S Lipo)
- BEC No
- Telemetry Supported
- ESC Programming BLHeli32
- Current Scaling 70
- Input Signal DShot 150/ 300/ 600/ 1200 /MultiShot/ OneShot etc.
- Working Temperature -20?? ~ +55??
- Working Humidity 20??95%
- Storage Temperature -20?? ~ +70??
- Mounting Hole 30.5X30.5mm.??4mm/M3
- Dimension 42.5x42x5.5mm
- Weight 14.6g
Total Package Includes:
- 1 x FC
- 1 x ESC
- 1 x capacity
- 1 x XT60 cable
- 1 x FC-ESC cable
- 5 x M3 nylon nut
- 1 x 90mm VTx cable
- 1 x 90mm DJI cable
- 1 x 120mm camera cable
- 1 x 120mm GPS/Compass cable
- 8 x M3*8mm silicone grommets
