Description

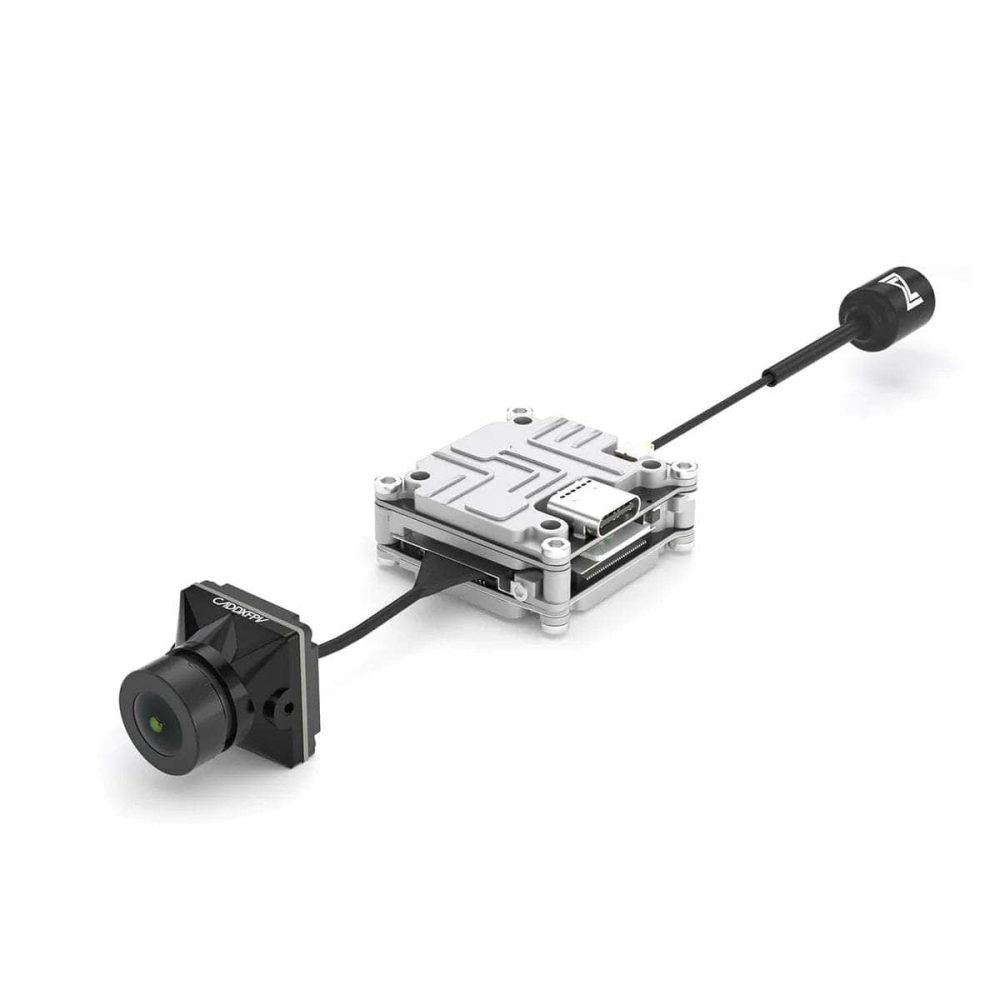

Capture stunning aerial video with the Caddx Nebula Pro Vista Kit. This lightweight kit comes with a 12cm cable and is designed to ensure a clear. high quality image. The Pro Vista Kit produces vibrant colors. deep contrast. and sharp details with minimal distortion.
The Caddx Nebula Pro Digital FPV Camera Kit is another advanced video transmission module by Caddx and fully authorized by DJI that supports a 5.8GHz digital video signal and 720p 120fps image transmission. The Caddx Nebula Pro with Vista is designed for FPV drones and it can be used with DJI FPV Goggles. which provide digital high-definition pictures and a transmission range up to 4km. The Vista system allows up to eight drones to fly simultaneously. Each operator has an exclusive channel. which helps reduce cross-interference and provides an optimal racing experience.
User can wirelessly connect their Vista Kit to the DJI FPV Remote Controller and DJI FPV Goggles without having to purchase additional receivers. as well mount on racing drones!
Check out the entireDJI System product line. ourDJI compatible gearand ourCADDX selection!
Features
- Lightweight digital image transmission combination
- Embedded Remote Controller Receiver
- Stable and clear HD video
- 720p/120fps
- 28ms of latency over 4km
- 27g weight
- 8 video channels
Specifications
- Model: Nebula Pro Vista Kit
- Weight: Vista Kit(camera included): 25g
- Weight(Antenna): 1.5g
- Dimensions(Vista Kit): 30 x 29 x 13mm
- Dimensions(Camera): 19 x 19 x 20mm
- Dimensions(Coaxial Cable): 120mm
- Operating Frequency: 5.725-5.850GHz
- Transmitter Power(EIPP): FCC/SRRC/MIC: <30dBm
- CE: <14dBM
- Min. Latency(end-to-end): Low Latency Mode(720p 120fps): 21-28ms
- Max. Transmission Distance: FCC/SRRC: 4km; CE: 0.7km
- I/O Interface: USB-C. IPEX. 3-in-1port
- Supported Flight Control System: F3.F4.F7
- Operating TemperatureRange: 32?? to 104??F (0?? to 40??C)
- Input Power: 7.4-26.4V
- Power Output: 25W/200mW/500mW/700mW
- Hardware Included: Vista/Nebula pro/coaxial-cable/antenna
- Goggles: Work with DJI goggles
- Camera(sensor): 1/3″ CMOS
- Camera(Lens): 2.1mm
- Camera(Shutter): Rolling Shutter
- Camera(FOV): 150??(D);122??(H);93??(V)
Includes
- Caddx Nebula Pro Vista Kit w/ 12cm Cable – Black
